BQ HQ NQ PQ Core Barrel , 1.5M Double tube core barrel for exploration core drilling

1 sets
MOQ
Negotiate
قیمت
BQ HQ NQ PQ Core Barrel , 1.5M Double tube core barrel for exploration core drilling
امکانات گالری توضیحات محصول درخواست نقل قول
امکانات
مشخصات
Name: Core Barrel
Type: Conventional Core Barrel
Style: Wireline Core Barrel
Materials: European 4145 Steel Casing
Model: Q Series Core Barrel NQ, HQ, PQ Wireline Core Barrel
Metric: Bristish Metric Core Barrel
Standards: T 2-66, T 2-76, T 2-86, T 2-101, T 2-116; T6-76, T6-86, T6-101, T6-116
Core Barrels: Boart Longyear Core Barrel
Sweden Core Barrel: Core Barrel, Atlas Copco Core Barrel
Tools: Wireline Coring Tools
Q 3 Series: HQ 3, NQ 3, PQ 3 Core Barrels
Triple Core Barrel: BMLC, NMLC, HMLC Triple Tube Core Barrels
Series: Wireline Diamond Core Bits
Model No: Impregnated Diamond Core Bits
Drilling: Exploration Core Drilling
Drills: Wireline Core Drilling
Mining: Australia Mining
Exploration: Australia Exploration
Model: Mining Exploration Core Drilling
Usage: Africa Mining
Applications: Copper Mining Drilling
برجسته:

,

,

wireline core barrel

اطلاعات اولیه
محل منبع: Germany
نام تجاری: ROSCHEN
گواهی: ISO, API
شماره مدل: AQ, BQ, NQ, HQ, PQ/ BQ3, NQ2, NQ3, NQTT, HQ3, HQTT, PQ3, PQTT, T2 46, T2 56, T2 66, T2 76, T2 86, T2 101, T6 86, T6 101, T6 116, T6 131
پرداخت
جزئیات بسته بندی: Polywooden packing box
قابلیت ارائه: 1000 sets
توضیحات محصول





BQ HQ NQ PQ Core Barrel , 1.5M Double tube core barrel for exploration core drilling



Wireline Core Barrel

Wireline Drilling Core Barrel

Wireline Drilling Core Barrel BQ HQ NQ PQ

Wireline Drilling Core Barrel BQ HQ NQ PQ , Double tube core barrel 1.5 meter for exploration core drilling



Wireline Drilling Core Barrel BQ HQ NQ PQ



Wire-line core drilling tools can lift core from drill rods without picking up coring system. A complete set of wire-line drill tools include: Core barrel assembly, overshot assembly, drill rods, holding dog, hoisting plug, circle wrench etc. It has some advantages such as high penetration rate, high core recovery ratio, long bit life and lower labour intensity. The advantages can get more clear with the increasing of drill hole depth.

We could supply BQ Core Barrel, NQ Core Barrel, HQ Core Barrel, PQ Core Barrels,





Specifications



Wireline drilling tool
1. ISO certificate tool
2. API standard tool
3. Drilling NQ.HQ etc.bit
4. Good After sales service





Wireline Q series Core Barrel



Wireline drilling is the special method of removing the core.



When the driller wants to remove core from a conventional core drill, the entire core barrel has to be removed from the hole. This is time-consuming, as each rod has to be removed one at a time.



With wireline drilling, a barrel of core can be removed from the bottom of the hole without removing the rod string. When the driller wants to remove the core, an overshot is lowered on the end of a wireline. The overshot attaches to the back of the core barrel inner tube and the wireline is pulled back and the inner tube disengages itself from the barrel.




1.5m and 3.0m length core barrels are avaiable.



We will feel happy to give you a quotation upon receipt of your detailed requirements.




Core barrel introdution:


Used in loose, broken stratigraphic or coal extraction and protect rock (mine) heart of drilling tools.



Double core tube and tube has outer pipe, rinses through joint between the internal and external tube water flow to the bottom of the hole, protecting cores from rinses washouts. Double core tube has double motion and single movement two kinds. Double motion and core tube is internal and external core tube following bit and drill stem rotation, it in no serious loose or broken strata.



Single movement double core tube internal and external tube has bearing isolation, pipe outer pipe driven only pick up bit rotation, and broken rock tube does not rotate, avoid to core friction, vibration, etc., with mechanical damage, so it in serious loose fractured formations.these, can be well protected cores.



Use double deck core tube take core, bits need to use wall thickness of the alloy drill or diamond bits.



Due to the rock drill contact surface area increased and the lip use double deck core tube than ordinary core tube drilling efficiency to reduce. In the ledge, coal, in order to guarantee rock (mineral) heart take rate, rules must be use double deck core tube coring. More complex double core tube, except to finish single movement, in addition, aluminum, steel tube placed plastic or qualitative buckled half close tube, have a better protection of the core role.



Double core tube card broken cores and seal block within the next port, the core tube by the drill is placed in the core card fault device (fern, card spring, claw reed, etc.) to finish.

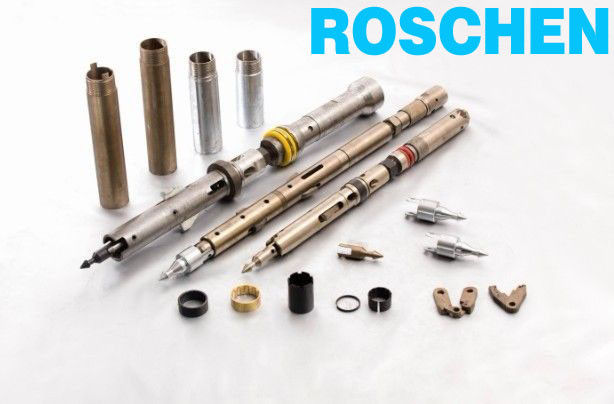

BQ HQ NQ PQ Core Barrel , 1.5M Double tube core barrel for exploration core drilling 0






BQ HQ NQ PQ Core Barrel , 1.5M Double tube core barrel for exploration core drilling 1
