Geological Core Drilling Rod

50 meters
MOQ
$50-200
قیمت
Geological Core Drilling Rod
امکانات گالری توضیحات محصول درخواست نقل قول
امکانات
مشخصات
برجسته:

آداپتور ساق پا,

,

tapered drill bits

اطلاعات اولیه
Place of Origin: Germany
نام تجاری: ROSCHEN
گواهی: ISO, API
Model Number: AQ, BQ, NQ, HQ, PQ/ BQ3, NQ2, NQ3, NQTT, HQ3, HQTT, PQ3, PQTT, T2 46, T2 56, T2 66, T2 76, T2 86, T2 101, T6 86, T6 101, T6 116, T6 131
پرداخت
Packaging Details: steel packing
Supply Ability: 50000 pcs
توضیحات محصول



Wireline Heat Treatment HWT / Q Series Geological Core Drilling Rod and Casing Tubes




Description:


ROSCHEN wireline drill rods are all manufactured by CNC machines under DCDMA standard. They're made of high quality alloy steel with heat-treated. We also can produce various sizes of casing tubes.
Drill pipes will be manufactured from seamless steel tube by cold drawn.
The material is XJY850 /  30CrMnSiA / 40 - 41 which is one of the best material for geological drilling in world.

Coring rods are crafted from quality heat treated materials ensuring superior wear resistance, strength, and toughness in the most demanding applications.
Rods and casing are manufactured under stringent industry standards, and are field tested under a variety of conditions.
All drilling rods are designed to be compatible with other rods manufactured to DCDMA standards.


Specifications:

1. High quality alloy tube
2. Thru-wall heat treated tube body
3. Consistent concentricity, straightness
4. Tapered threads


Raw materials:


ROSCHEN only choose the best steel tubes in the market to manufacture our rods and pipes. Spot check will be conducted after the steel tubes delivered to company. We will make sure the compositions and specifications match the inspection report form the suppliers.



Heat treatment control:


Heat treatment will greatly improve the material strength and increase the thread wear life of the rods and casings. We conduct either tru-wall or both ends heat treatment to the tube body. After heat treatment, strength, hardness, straightness and concentricity of the treated tubes will be tested in our lab.



Thread opening process:


Accuracy of threads will determine the use effects and life time of drill rod and casings.
CNC latches and form cutter are used in thread opening processing to minimize error made by anthropic factors.



Additional thread treatment:


Surface of the threads will be cleaned to remove burr adhered after threads are opened.
Afterwards, the tread surface will be phosphated to improve surface conditions.



Specification:



Steel grade: 30CrMnSiA NQ Drilling Rod
Rod Size:(mm) 70.1*5*3050
Rod OD/ID (mm ) 69.9/60.3
Rod  length (m) 1.5 or 3
Rod thickness 5.5
Rod  Weight (kg/m) 8.8
Thread length (mm) 42
Thread pitch (thread/inch) 3
Box thread tooth height  0.76
Pin  thread tooth height  0.88
Thread tooth angle (°) 29°
Tensile Strength  (Mpa) 960
Yield Strength (Mpa) 840
Elongation(%) 18
Hardness (HRC) 30/30
Material 30 CrMnSiA
Heat treatment  Entire-length or ends thermal processed
Maximum  core depth (m) 1500



Packing


Concerning the packing, it is packaged by iron belts.



BQ Bundled Specifications (Steel Belt):


3.0m/10ft BQ Drill Rod (37 Pieces)
Dimensions (L×W×H): 3.0×0.4×0.4
Volume: 0.5 m3
Gross Weight: 670 kg



BQ Bundled Specifications (Iron Frame):


3.0m/10ft BQ Drill Rod (30 Pieces)
Dimensions (L×W×H): 3.0×0.35×0.3
Volume: 0.32 m3
Gross Weight: 550 kg



NQ Bundled Specifications (Steel Belt):


3.0m/10ft NQ Drill Rod (37 Pieces)
Dimensions (L×W×H): 3.0×0.5×0.5
Volume: 0.75 m3
Gross Weight: 900 kg



NQ Bundled Specifications (Iron Frame):


3.0m/10ft NQ Drill Rod (25 Pieces)
Dimensions (L×W×H): 3.0×0.38×0.39
Volume: 0.43 m3
Gross Weight: 610 kg



HQ Bundled Specifications (Steel Belt):


3.0m/10ft HQ Drill Rod (37 Pieces)
Dimensions (L×W×H): 3.0×0.625×0.625
Volume: 1.2 m3
Gross Weight: 1300 kg



HQ Bundled Specifications (Iron Frame):


3.0m/10ft HQ Drill Rod (25 Pieces)
Dimensions (L×W×H): 3.0×0.46×0.47
Volume: 0.65m3
Gross Weight: 890 kg

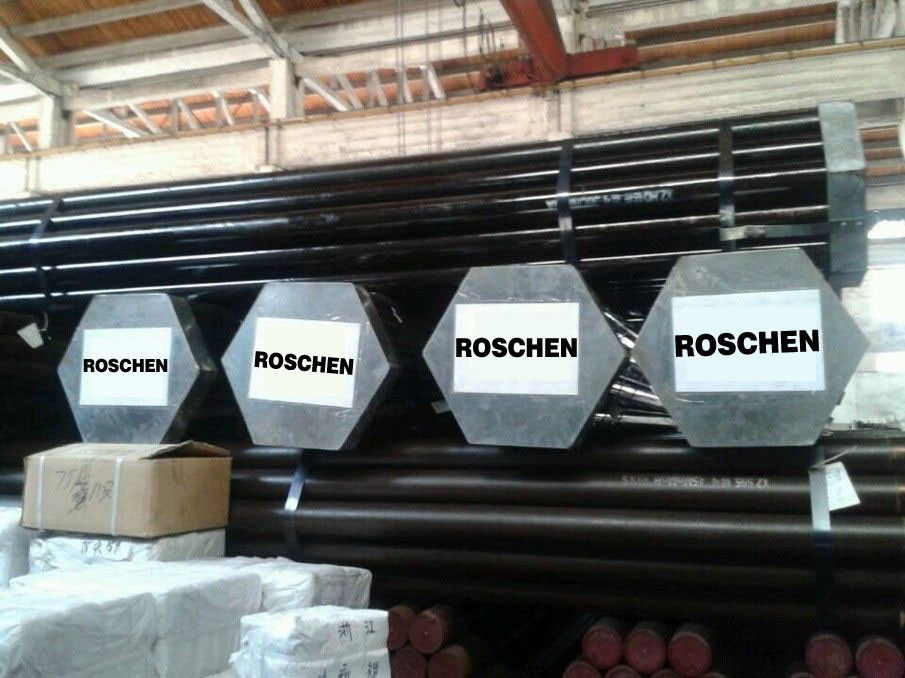

Geological Core Drilling Rod 0
Geological Core Drilling Rod 1
