Rock Drilling T45 Thread Retrac Ballistic Drop Center Button Bits

1 pcs
MOQ
Rock Drilling T45 Thread Retrac Ballistic Drop Center Button Bits
امکانات گالری توضیحات محصول درخواست نقل قول
امکانات
مشخصات
برجسته:

ابزار حفاری DTH,

,

diamond core drilling bits

اطلاعات اولیه
محل منبع: Germany
نام تجاری: ROSCHEN
گواهی: ISO
شماره مدل: T45
پرداخت
جزئیات بسته بندی: Carton box
قابلیت ارائه: 5000pcs
توضیحات محصول

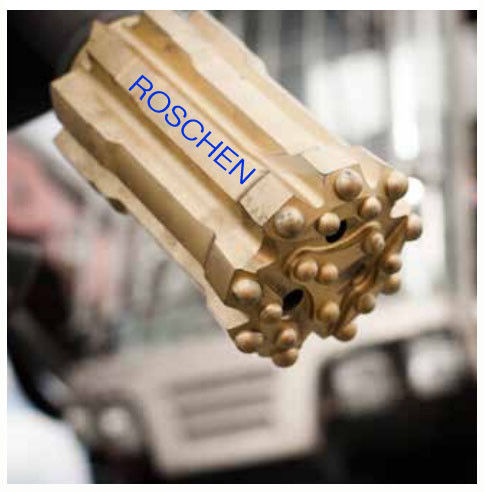

Rock Drilling T45 Thread Retrac Ballistic Drop Center Button Bits


Rock Drilling T45 Thread 89mm Retrac Ballistic Drop Center Button Bits




Roschen offers a wide variety of drill bits for all project sizes and ground conditions.
Thread button bit and straightrac button bit is available!

Tapered equipment affords drillers the ability to change drilling bits whilst still using the same drilling rod. Drillers choose tapered button bits for faster drilling penetration rate. Different taper sizes have different characteristics when it comes to the “knock-off” index – the smaller angle will prevent the bit from spinning.

Type:
12° Tapered Button Bit Short Skirt



Advantages:
1. High grade tungsten carbide inserts
2. High grade steel materials body
3. Strict processing CNC Machine
4. Seriours heat treatment

Applications:
1. Quarrying Stone Industry
2. Underground Mining
3. Tunneling


Sizes:

Retrac type thread button bit
Thread Model Dimensions Dia. Button number Face shap Button shap Part No.
mm in
R32 51 2" 9 Flat face Spherical Q9-51-R32-RE-FF-SB
T38 76 3" 10 Flat face Ballistic Q10-76-T38-RE-FF-BB
76 3" 13 Drop center Ballistic Q13-76-T38-RE-DC-BB
76 3" 13 Uni-face Ballistic Q13-76-T38-RE-UF-BB
89 3 1/2" 12 Flat face Ballistic Q12-89-T38-RE-FF-BB
89 3 1/2" 12 Flat face Spherical Q12-89-T38-RE-FF-SB
89 3 1/2" 13 Uni-face Spherical Q13-89-T38-RE-UF-SB
89 3 1/2" 13 Uni-face Ballistic Q13-89-T38-RE-UF-BB
T45 76 3" 12 Flat face Spherical Q12-76-T45-RE-FF-SB
76 3" 12 Flat face Ballistic Q12-76-T45-RE-FF-BB
76 3" 13 Drop center Spherical Q13-76-T45-RE-DC-SB
76 3" 13 Drop center Ballistic Q13-76-T45-RE-DC-BB
76 3" 13 Uni-face Spherical Q13-76-T45-RE-UF-SB
76 3" 13 Uni-face Ballistic Q13-76-T45-RE-UF-BB
89 3 1/2" 12 Flat face Spherical Q12-89-T45-RE-FF-SB
89 3 1/2" 12 Flat face Ballistic Q12-89-T45-RE-FF-BB
89 3 1/2" 13 Uni-face Spherical Q13-89-T45-RE-UF-SB
89 3 1/2" 13 Uni-face Ballistic Q13-89-T45-RE-UF-BB
T51 115 4 1/2" 19 Uni-face Spherical Q19-115-T51-RE-UF-SB
GT60 115 4 1/2" 19 Uni-face Spherical Q19-115-GT60-RE-UF-SB
