Conventional Seamless Casing Pipe OD 131 mm x ID 113mm x 6mm

30 meters
MOQ
$10-60
قیمت
Conventional Seamless Casing Pipe OD 131 mm x ID 113mm x 6mm
امکانات گالری توضیحات محصول درخواست نقل قول
امکانات
مشخصات
برجسته:

Seamless Casing Pipe,Drill Pipe Casing

,

Drill Pipe Casing

اطلاعات اولیه
محل منبع: Germany
نام تجاری: ROSCHEN
گواهی: ISO
شماره مدل: 146 (143/134) 131 (128/119) 116 (113/104) 101 (98/89) 86 (84/77) 76 (74/67) 66 (64/57) 56 (54/47) 46 (44/37)
پرداخت
جزئیات بسته بندی: wooden, steel packing
قابلیت ارائه: 2000 meters /day
توضیحات محصول

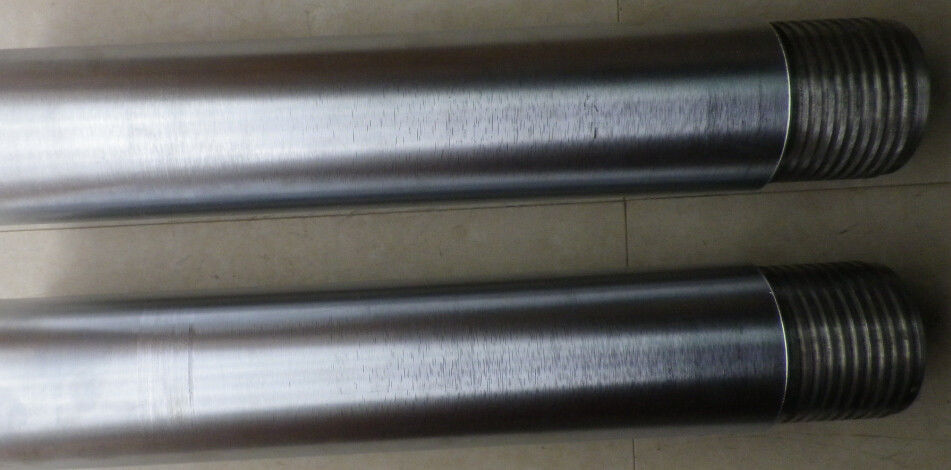

Conventional Seamless Casing Pipe OD 131 mm x ID 113mm x 6mm




Drill Rods and Casing Tubes



We manufacture a range of high quality tubular products from high tensile cold drawn and hot finished seamless steel tubes.


Drill rods are available in DCDMA sizes AW, BW and NW and with tapered threaded tool joints in

sizes BWY and NWY.

Drill rods are also available in Wireline sizes N, H, P, S and Metric sizes 42mm and 50mm.

We also manufacture Friction-welded Drill Rods for other applications such as DTH Hammer drilling.

Casing tubes are available in DCDMA sizes BW, NW, HW, PW, SW, UW and ZW and Metric Sizes

46 -146 mm.


Drill Rods:

AW BW NW
Drill Rods BWY NWY
Drill Rods Metric
Drill Rods Friction Welded
Drill Rods Wireline N H P
Drill Rods Wireline S




Casing Tubes
BW – ZW
Casing Tubes Metric 46 - 146


Specifications:

SIZE Tube O.D. Tube I.D. Threads
A B per inch
(mm) (mm) (T.P.I.)
146 (143/134) 143.3 133.3 4
131 (128/119) 128.4 118.4 4
116 (113/104) 113.4 103.4 4
101 (98/89) 98.4 88.4 4
86   (84/77) 84.4 77.5 4
76   (74/67) 74.4 67.5 4
66   (64/57) 64.4 57.5 4
56   (54/47) 54.3 47.4 4
46   (44/37) 44.3 37.4 4
