Straightness alloy steel Heavy Weight Drill Pipe DCDMA Standard AQ BQ NQ HQ PQ
Straightness alloy steel Heavy Weight Drill Pipe AQ BQ NQ HQ PQ
Specifications:
Q series thread drill rods are the undisputed, worldwide choice for wireline coring drill rods.
1. High quality alloy tube
2. Thru-wall heat treated tube body
3. Consistent concentricity, straightness
4. DCDMA standard
Features:
TUBING
• High quality alloy steel tubing
• Consistent concentricity, straightness and heat treatment
• All tubing available in DCDMA sizes
THREAD:
• Tapered, course threads (3 threads per inch) provides easy make and break
• Load efficiency of 30% provides sufficient strength for average applications
THRU-WALL HEAT TREATMENT:
• Provides 140% material strength
• Heat treated box threads significantly increases thread wear life
CASE HARDENING:
• Significant research, development and field testing has resulted in a hardening process that is unmatched in the marketplace
• Pin thread crest is hardened to nominal 55 HRc to eliminate damaging adhesion wear
• Eliminates the transfer of wear material back and forth which is what happens between threads of equal hardness, leading to large scale galling and joint seizing
Technical Parameters:
Wireline drill rod AQ BQ NQ HQ PQ
| Size | OD (mm) | ID(mm) |
| AQ | 44.7 | 37.3 |
| BQ | 55.7 | 46.1 |
| NQ | 70 | 60.2 |
| HQ | 89 | 78 |
| PQ(PHD) | 114.5 | 101.5 |
Drill rod DCDMA size AW-HW
| Size | OD (mm) | ID(mm) |
| AW/AWJ/AWY | 43.7 | 30.7 |
| BW/BWJ/BWY | 54 | 38 |
| NW/NWY | 66.8 | 51 |
| HW | 89 | 71 |
|
Description |
OD(mm) |
ID(mm) |
Weight(Kg/3m) |
|
Rod, BQ 3.0 m Enhanced |
55.60 |
46.10 |
18.00 |
|
Rod, NQ 3.0 m Enhanced |
69.90 |
60.30 |
24.00 |
|
Rod, HQ 3.0 m Enhanced |
88.90 |
77.80 |
35.00 |

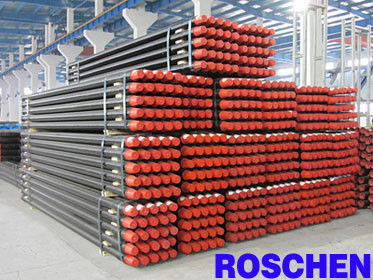

Packing
Concerning the packing, it is packaged by iron belts.
BQ Bundled Specifications (Steel Belt):
3.0m/10ft BQ Drill Rod (37 Pieces)
Dimensions (L×W×H): 3.0×0.4×0.4
Volume: 0.5 m3
Gross Weight: 670 kg
BQ Bundled Specifications (Iron Frame):
3.0m/10ft BQ Drill Rod (30 Pieces)
Dimensions (L×W×H): 3.0×0.35×0.3
Volume: 0.32 m3
Gross Weight: 550 kg
NQ Bundled Specifications (Steel Belt):
3.0m/10ft NQ Drill Rod (37 Pieces)
Dimensions (L×W×H): 3.0×0.5×0.5
Volume: 0.75 m3
Gross Weight: 900 kg
NQ Bundled Specifications (Iron Frame):
3.0m/10ft NQ Drill Rod (25 Pieces)
Dimensions (L×W×H): 3.0×0.38×0.39
Volume: 0.43 m3
Gross Weight: 610 kg
HQ Bundled Specifications (Steel Belt):
3.0m/10ft HQ Drill Rod (37 Pieces)
Dimensions (L×W×H): 3.0×0.625×0.625
Volume: 1.2 m3
Gross Weight: 1300 kg
HQ Bundled Specifications (Iron Frame):
3.0m/10ft HQ Drill Rod (25 Pieces)
Dimensions (L×W×H): 3.0×0.46×0.47
Volume: 0.65m3
Gross Weight: 890 kg
