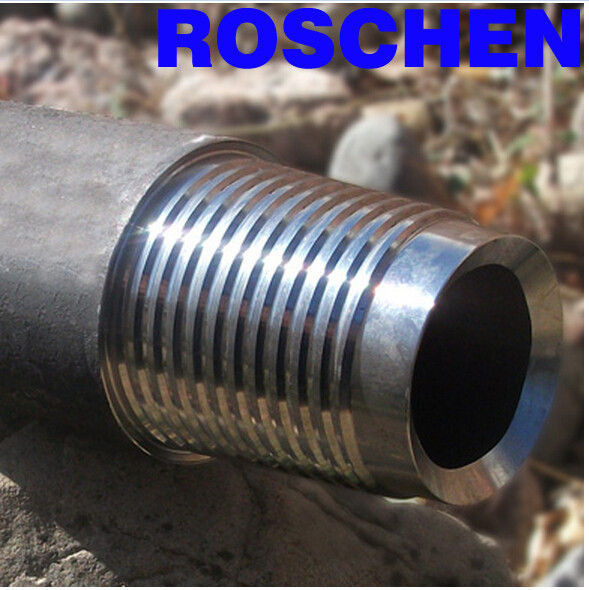

Heavy Duty Sonic Drill Rods 3-1/2" Friction Welded Processing With Advanced Techniques
  • Heavy Duty Sonic Drill Rods 3-1/2
  • Heavy Duty Sonic Drill Rods 3-1/2
  • Heavy Duty Sonic Drill Rods 3-1/2
Heavy Duty Sonic Drill Rods 3-1/2

Heavy Duty Sonic Drill Rods 3-1/2" Friction Welded Processing With Advanced Techniques

Place of Origin Germany
نام تجاری ROSCHEN
گواهی ISO, API
Model Number 88.9 114.3
جزئیات محصول
برجسته کردن:

میله های مته Sonic

,

میله مته 3-1 / 2 "

,

میله مته پردازش جوش داده شده با اصطکاک

شرایط پرداخت و حمل و نقل
Minimum Order Quantity
10 pcs
قیمت
$1-99
Packaging Details
Steel/Wood box
Supply Ability
500 pcs week
توضیحات محصول

Heavy Duty Sonic Drill Rods 3-1/2" friction welded processing with advanced techniques and premium materials 4140



Heavy Duty Rods (HD)

ROSCHEN' HD sonic drill rods are the industry's most state of the art rods available today. They are specifically designed for sonic drilling and manufactured using only the most advanced techniques and premium materials.


Features:
1. 5.65" sq. inch weld area
2. Internally upset midbody - increasing the weld area.
3. 4140 QT tool joints
4. Inertia welded - increased strength due to full face surface welds.
5. Internal flash removed - reducing the potential for stress fractures under the stress of sonic drilling.
6. Heat treated - weld zone to further optimize the mechanical and physical properties of the rod.


Specifications:

SONIC DRILL RODS SPECIFICATIONS
O.D. I.D. THREAD* WEIGHT
in mm in mm lbs/10ft kg/3m
3 1/2 88.9 2 1/4 57.1 HP90 RH 134 59.8
3 1/2 88.9 1 3/4 44.5 2 3/8" IF 137 61.2
4 1/2 114.3 3 1/4 82.55 HP90 RH 216 96.4
4 1/2 114.3 2 1/8 53.98 2 7/8" IF 225 100.5
4 1/2 114.3 3 76.2 ROUSSY 240 107.1

* HP90 is compatible with H90 thread.



SONIC HD DRILL ROD
O.D. I.D.* LENGTH THREAD
3 1/2" 2 1/4" 1' HP90
3 1/2" 2 1/4" 2' HP90
3 1/2" 2 1/4" 5' HP90
3 1/2" 2 1/4" 10' HP90
3 1/2" 2 1/4" 20' HP90
3 1/2" 1 3/4" 1' 2 3/8" IF
3 1/2" 1 3/4" 2' 2 3/8" IF
3 1/2" 1 3/4" 5' 2 3/8" IF
3 1/2" 1 3/4" 10' 2 3/8" IF
3 1/2" 1 3/4" 20' 2 3/8" IF
4 1/2" 3 1/4" 1' HP90
4 1/2" 3 1/4" 2' HP90
4 1/2" 3 1/4" 5' HP90
4 1/2" 3 1/4" 10' HP90
4 1/2" 3 1/4" 20' HP90
4 1/2" 2 1/8" 1' 2 7/8" IF
4 1/2" 2 1/8" 2' 2 7/8" IF
4 1/2" 2 1/8" 5' 2 7/8" IF
4 1/2" 2 1/8" 10' 2 7/8" IF
4 1/2" 2 1/8" 20' 2 7/8" IF
4 1/2" 3" 1' ROUSSY
4 1/2" 3" 2' ROUSSY
4 1/2" 3" 5' ROUSSY
4 1/2" 3" 10' ROUSSY
4 1/2" 3" 20' ROUSSY

*I.D. is measured at the tool joint.
