11 Degree Tapered Rock Drill Rods , Tungsten Carbide Rod In Underground Mining Industry

1 sets
MOQ
Negotiate
قیمت
11 Degree Tapered Rock Drill Rods , Tungsten Carbide Rod In Underground Mining Industry
امکانات گالری توضیحات محصول درخواست نقل قول
امکانات
مشخصات
گواهی: API, API 5DP, ISO9001, CE
شماره مدل: Taper Drill Rod 7°, 11°, 12°,etc
Drill Rock Hardness: F=6-20
Condition: New
Type: Drill Pipe, Tapered Tools
Processing Type: Forging
Usage: Rock Drilling
Material: Tungsten Carbide
Application: Quarry Or Mining Or Well Drilling
After-sales Service: 7X24hours Available
Diameter: Hex 22/25*108 Mm
Package: Carton And Wooden Case
Length: 500mm To 8000mm
برجسته:

ابزار حفاری DTH,

,

concrete core drill bit

اطلاعات اولیه
محل منبع: China
نام تجاری: ROSCHEN
پرداخت
جزئیات بسته بندی: Carton And Wooden Case
قابلیت ارائه: 2000 sets per month
توضیحات محصول



11 Degree Tapered Rock Drill Rods , Tungsten Carbide Rod In Underground Mining Industry



11° Tapered Rock Drill Rods , Tungsten Carbide Rod Used In Underground Mining Industry




Tapered drill rod, Drill rod for rock drilling machine,Integral drill rod B19 B22, 22mm diameter drill rod/drill pipe, Tapered drill rod, integrail drill rod, integral drill pipe, Hex mining rock drill steel rod, Light weight rock drilling rod, rock drilling pipe 2m, 4m coal mining rock drilling rod , rock drill tapered steel rods.


This drill rod can be connected with button bits,taper bits,and cross-type bits.

Application:Tapered drill rods are used in granite and marble quarry, gold mine, railway, tunnel, etc. for drilling

Rock Drill Steel,Tapered Rock Drill Rods




1) Material: 40SiMnCrNiMo


2) Shank spec.: Hex19*108mm, Hex22*108mm, Hex25*108mm, Hex25*159mm


3) Taper connection: 7, 11, 12 degree


4) Length: 0.5m~6.0m

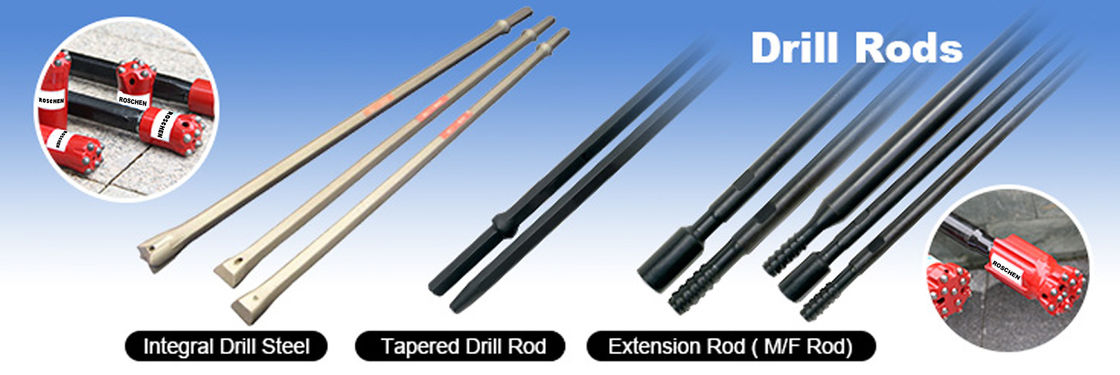

Types of drill rods Specifications Length(mm) Shank Weight (kg)
Tapered drill rods Taper Angle: 4, 6, 7, 11, 12 degree 400mm to 8000mm Hex22mm*108mm Hex25mm*159mm Hex19mm*108mm 1.7 - 24.9
Integral drill steel Bit diameter: 26mm, 28mm, 30mm, 32mm, 34mm, 36mm, 38mm, 40mm, 42mm 400mm to 4800mm 3 – 15.4
Plug hole rods Chisel bit diameter: 17mm, 20mm, 22mm 150mm to 710mm 0.6 - 2.9
