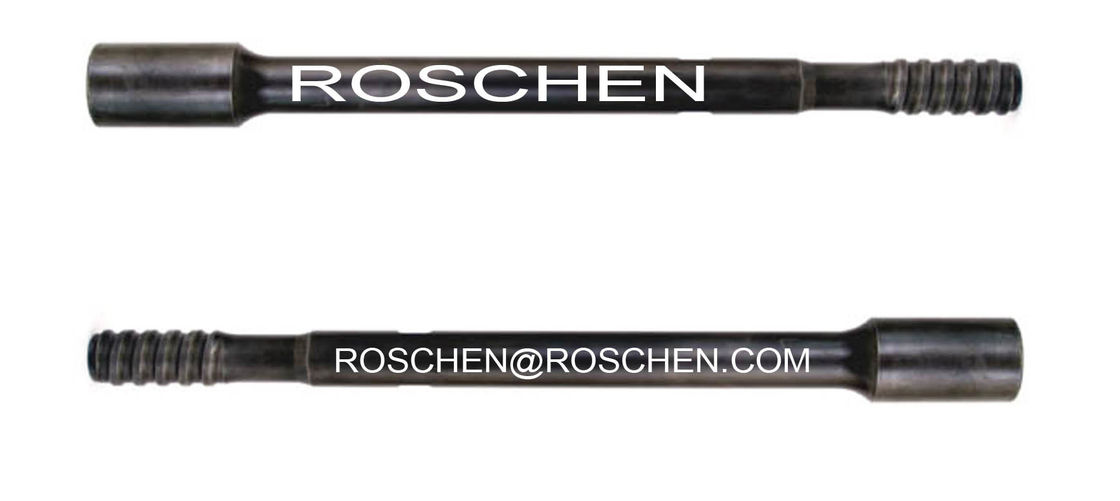

Forging Blast Hole Threaded Drill Rod with R32 / R38 / T38 / T45 / T51 Thread
Drill rod using thread system. Drilling precision can be further improved by using this as the first rod in a normal drill string. Furthermore, since this is a speed rod design it will produce straighter holes and at least 10% higher penetration rate in good rock conditions compared to rod and coupling sleeve combination system.
Mainly Products:
Thread Drill Bits---Diameter: 51mm to 127mm
Thread Type---R22,R25,R28,R32,R38,T38,T45,T51
Face Shape---Plate, Concave, Convex.
Bit Shank & Coupling sleeve---R22,R25,R28,R32,R38,T38,T45,T51
Drill Rod:
Thread Rod---R25,R28,R32,R38,T38,T45,T51.
Steel Drill Rod---H19/H22, Length: 0.5M to 6.0M.
Integral Drill Rod---H19/H22, Diameter---20mm - 42mm.
Description & Specification:
Drill rod using thread system. Drilling precision can be further improved by using this as the first rod in a normal drill string. Furthermore, since this is a speed rod design it will produce straighter holes and at least 10% higher penetration rate in good rock conditions compared to rod and coupling sleeve combination system.
Application:
• Widely used in drifting, tunneling, benching, and long hole drilling
• Blast Hole Drilling
• Africa Copper Mining
• Zambia copper belt province, Africa
• Chile Copper Mining
Specifications:
| Extension Rod T45-Round 46-T45 | |||
| Length (mm) | Dia.(mm) | ||
| 1 | 1830 | 46 | |
| 2 | 2435 | 46 | |
| 3 | 3050 | 46 | |
| 4 | 3660 | 46 | |
| 5 | 4270 | 46 | |
| 6 | 5530 | 46 | |
| 7 | 6095 | 46 | |
| Extension Rod T45-Round 46-T45 | |||
| Length (mm) | Dia.(mm) | ||
| 1 | 1525 | 46 | |
| 2 | 1830 | 46 | |
| 3 | 3050 | 46 | |
| 4 | 3660 | 46 | |
| 5 | 4270 | 46 | |
| 6 | 5530 | 46 | |
| 7 | 6095 | 46 | |
| Extension Rod T51-Round 52-T51 | |||
| Length (mm) | Dia.(mm) | ||
| 1 | 3050 | 52 | |
| 2 | 3660 | 52 | |
| 3 | 4270 | 52 | |
| 4 | 4880 | 52 | |
| 5 | 5530 | 52 | |
| 6 | 6095 | 52 | |
| MF-Rod T51-Round 52-T51 | |||
| Length (mm) | Dia.(mm) | ||
| 1 | 1525 | 52 | |
| 2 | 1830 | 52 | |
| 3 | 3050 | 52 | |
| 4 | 3660 | 52 | |
| 5 | 4270 | 52 | |
| 6 | 4880 | 52 | |
| 7 | 5530 | 52 | |
| 8 | 6095 | 52 | |
