High Pressure Rock Drilling DTH Hammer DHD350 Hammer , Downhole Hammer with Foot Valve

1 set
MOQ
Negotiate
قیمت
High Pressure Rock Drilling DTH Hammer DHD350 Hammer , Downhole Hammer with Foot Valve
امکانات گالری توضیحات محصول درخواست نقل قول
امکانات
مشخصات
Model: DHD350 Down The Hole Hammer, DTH Hammer
Delivery time: stocks is available
Material: Tungsten Carbide
Usage: Water well drilling, Mining Drilling
Processing: Forging
Tools: Down The hole drilling
Machine: Crawler Drill rig
Thread: API Reg. Pin, Box
Hole Range: 90-1200mm
Pressure: High Pressure
Use: Quarry Drilling, Blast hole drilling
برجسته:

ابزار حفاری DTH,

,

down hole tools

اطلاعات اولیه
محل منبع: CHINA
نام تجاری: ROSCHEN
گواهی: ISO
شماره مدل: DHD350
پرداخت
جزئیات بسته بندی: Poly wooden box
قابلیت ارائه: 10000 sets
توضیحات محصول

High Pressure Rock Drilling DTH Hammer , Downhole Hammer with Foot Valve

High Pressure Rock Drilling DTH Hammer DHD350 hammer, Downhole Hammer with Foot Valve





High Pressure Rock Drilling DTH Hammer , Downhole Hammer with Foot Valve


5 inch COP54 , DHD350R Shank High pressure rock drilling DTH hammer with foot valve





Drill bits


Selecting the right bit


Roschen has a comprehensive range of DTH drill bits to match all conceivable applications.

Each bit is made from quality alloy steel, and has been precision machined to produce a perfect body, heat treated to the required hardness, given surface compression for fatigue resistance, and fitted with precision buttons manufactured in-house.


Five basic designs are available: Convex, Flat front, Speed Bit, Concave, and Rocket bit. These are designed for specific applications for all rock types, hardness's and conditions Bit life and rate of penetration are the most important criteria in selecting the right bit for a particular application.

In most cases, the focus is on productivity, so the fast cuttings removal features of the SpeedBit and Convex/Ballistic designs are preferable, to ensure the buttons are cutting clean, with the minimum of recrushing.


In hard and abrasive formations, however, the flat front design offers best bit life, having strong gauge rows with large spherical buttons which are easy to regrind and maintain. The Speed Bit offers improved productivity with the same gauge as the Flat front, but with ballistic buttons in the front for faster penetration. An alternative is the Concave design with spherical buttons.


The Rocket bit can be dressed with ballistic buttons for use in soft to medium hard formations where fractured rock can be expected, or can be supplied with spherical buttons for hard and abrasive formations.
Bits are manufactured to match all diameters of Secoroc hammers.



It is a kind of valveless high air pressure DTH hammer with foot valve.


The rock hammer has the fellow advantages:


1: Valveless air distribution. more reliable.
2. The rock impacter are simple design of the piston, long life.
3. More efficient energy transfter,faster drilling speed, lower air consumption and lower oil consumption.
4. Fewer internal parts, simple structure, long life, less failure and easier to maintain because all the parts are heat treated.

5. Easy to disassemble because the top sub, the drive chuck and the external cylinder are connected multi-step thread.


Hammer shank available:


1. BR shank series: BR1, BR2, BR3;
2. Cop shank series: Cop32, Cop34, Cop44, Cop54, Cop64, Cop84;
3. DHD shank series: DHD3.5, DHD340,DHD350, DHD360, DHD380;
4. SD shank series: SD4, SD5, SD6, SD8, SD10, SD12, SD15, SD18;
5. Mission shank series: Mission40, Mission50, Mission 60, Mission 80;
6. QL shank series: QL30, QL40, QL50, QL60, QL80;
7. NUMA shank series: NUMA120, NUMA125, NUMA180, NUMA240;


Other hammer shanks can be available according to customer's drawing or samples.


Technical Parameters of High air pressure DTH hammer with foot valve





DHD 350 Hammer Parts List
Item Description Weight Parts No.
1.Top Sub 15 RD5501
2.O-Ring of Top Sub 0.01 RD5502
3.Check Valve 1 RD5503
4.Spring 0.04 RD5504
5.Compression Buffer 0.06 RD5505
6.Air Distributor 3.7 RD5506
7.Internal Cylinder 4.5 RD5507
8.Piston 15.5 RD5508
9.External Cylinder 30 RD5509
10.O-Ring of stop ring 0.01 RD5510
11.Stop Ring 0.3 RD5511
12.Drive Chuck 6.4 RD5512
13.Drill Bit 16 RD5513




According to customer's requirement, the top sub can be made into two spanners, and put protection buttons, An air controllinghole can be drilled on the check valve to provide more efficient cuttings discharge.



Technical Parameters
Length (Less bit) Weight (Less bit) External Dia. Bit Shank Hole Range Connection Thread
1214mm 76.5kg 125mm COP54, DHD350R 135-155mm API 2-3/8''REG
API 3-1/2''REG
Working Pressure Impact rate at 0.5 Mpa Recommended Rotation Speed Air Consumption
1.2-2.5Mpa 25HZ 20-35r/min 1.0Mpa 1.8Mpa 2.4Mpa
9m3/min 15m3/min 23m3/min



Any more technical question of this DTH Hammer&Bits please feel free contact with our DTH drilling Tools department.

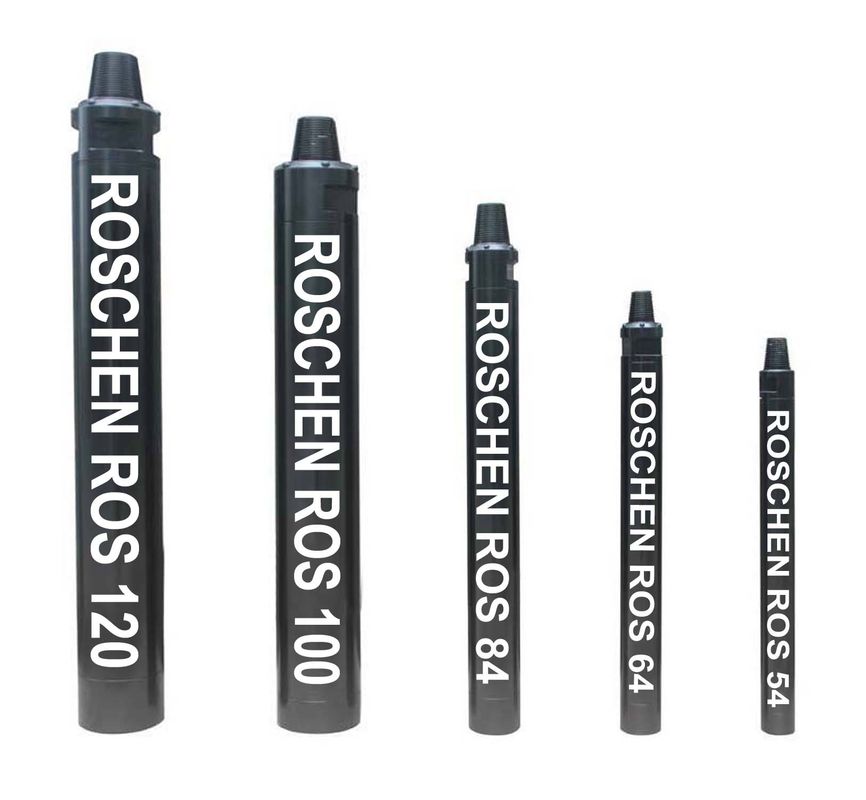

ROSCHEN DTH Hammers Specifications
Hammer Size Bit Shank ROSCHEN Code Connection Thread Suitable bit Working pressure Air consumption
2" BR2 ROS 11
ROS 22
RD50 box ¢70-¢90mm 0.7-1.75Mpa 0.7Mpa 4.5m3/min
1.0Mpa 4m3/min
1.4Mpa 5m3/min
3" DHD3.5 ROS 32 API 2 3/8" Reg ¢90-¢110mm 1.0-1.5Mpa 1.0Mpa 4.5m3/min
COP32/COP34
M30 1.5Mpa 9m3/min
4" DHD340 ROS 34 API 2 3/8" Reg ¢110-¢135mm 1.0-2.5Mpa 1.0Mpa 6m3/min
COP44
QL40
SD4 1.8Mpa 10m3/min
M40 2.4Mpa 15m3/min
5" DHD350 ROS 52 ROS 54 API 2 3/8"Reg/API 3 1/2" Reg ¢135-¢155mm 1.0-2.5Mpa 1.0Mpa 9m3/min
COP54
QL50
SD5 1.8Mpa 15m3/min
M50 2.4Mpa 23m3/min
6" DHD360 ROS 62 ROS 64 API 3 1/2" Reg ¢155-¢190mm 1.0-2.5Mpa 1.0Mpa 10m3/min
COP64
QL60
SD6 1.8Mpa 20m3/min
M60 2.4Mpa 28.5m3/min
8" DHD380 ROS 82 ROS 84 API 4 1/2" Reg ¢195-¢254mm 1.0-2.5Mpa 1.0Mpa 15m3/min
COP84
QL80 1.8Mpa 26m3/min
SD8 2.4Mpa 34m3/min
M80/M85
10" SD10 ROS 100 API 6 5/8" Reg ¢254-¢311mm 1.0-2.5Mpa 1.0Mpa 22m3/min
Numa100 1.8Mpa 40m3/min
ROS 100 2.4Mpa 55m3/min
12" DHD1120 ROS 120 API 6 5/8" Reg ¢305-¢445mm 1.0-2.5Mpa 1.0Mpa 30m3/min
SD12 1.8Mpa 56m3/min
Numa120 2.4Mpa 78m3/min
Notes: Any special size of DTH bits will be available by requests.
Metzke, Remet thread is available!
