Thread Sucker Rod Coupling Top Hammer Drilling API Female and Male
  • Thread Sucker Rod Coupling Top Hammer Drilling API Female and Male
  • Thread Sucker Rod Coupling Top Hammer Drilling API Female and Male
  • Thread Sucker Rod Coupling Top Hammer Drilling API Female and Male
  • Thread Sucker Rod Coupling Top Hammer Drilling API Female and Male
Thread Sucker Rod Coupling Top Hammer Drilling API Female and Male

Thread Sucker Rod Coupling Top Hammer Drilling API Female and Male

Place of Origin GERMANY
نام تجاری ROSCHEN
گواهی ISO, API
Model Number 1' - 6'
جزئیات محصول
برجسته کردن:

ابزار حفاری DTH,

,

concrete core drill bit

شرایط پرداخت و حمل و نقل
Minimum Order Quantity
5pcs
قیمت
$10-20
Packaging Details
wooden case;carton
توضیحات محصول

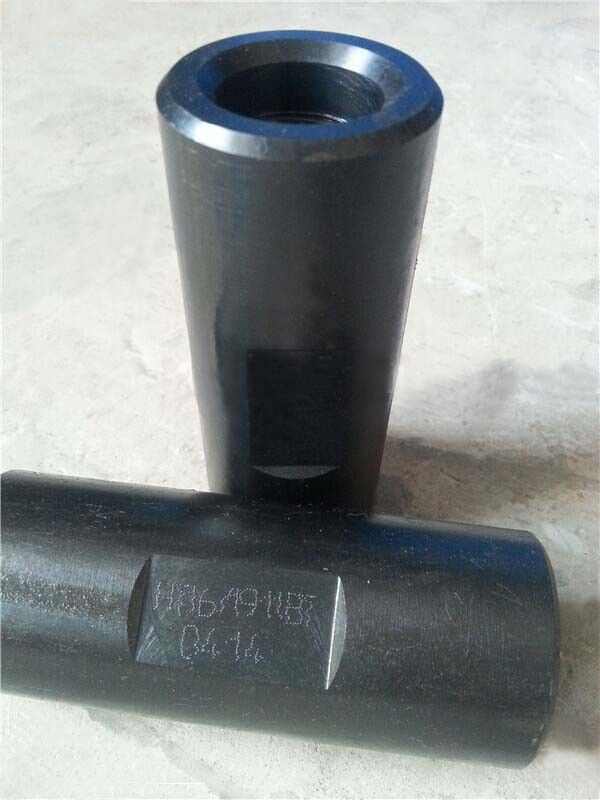

API Female and Male Thread Sucker Rod Coupling Top Hammer Drilling


Specifications:



API Female and Male Thread Sucker Rod Coupling
1. Meterial:high quality alloy
2. Surface treatment:phosphating, blueing




API Female and Male Thread Sucker Rod Coupling



Technical Parameters



Full Size Coupling



Size(in) Coupling O.D W(mm)
(+0.13,-0.25)		 Length L(mm)
(+1.57,-0.00)		 Thread D.(in) Length of Wrench Square
(mm)		 Hardness(HRA)
5/8" 38.10 101.6 15/16" 31.8 56-62
3/4" 41.28 1-1/16"
7/8" 46.00 1-3/16"
1" 55.60 1-3/8" 38.1
1-1/8" 60.33 114.3 1-9/16"

Slim Hole Coupling

Size(in) Coupling O.D W(mm)
(+0.13,-0.25)		 Length L(mm)
(+1.57,-0.00)		 Thread D.(in) Length of Wrench Square
(mm)		 Hardness(HRA)
5/8" 31.75 101.6 15/16" 31.8 56-62
3/4" 38.10 1-1/16"
7/8" 41.30 1-3/16"
1" 50.80 1-3/8" 38.1

Full Size Sub-coupling

Size(in) Coupling O.D W(mm)
(+0.13,-0.25)		 Length L(mm)
(+1.57,-0.00)		 Small End Thread D. Big End Thread D. Hardness(HRA)
5/8"-3/4" 41.28 101.6 15/16" 1-1/16" 56-62
3/4"-7/8" 46.00 1-1/16" 1-3/16"
7/8"-1" 55.60 114.3 1-3/16" 1-3/8"
1"-1-1/8" 60.33 127.0 1-3/8" 1-9/16"

 Slim Hole Sub-coupling

Size(in) Coupling O.D W(mm)
(+0.13,-0.25)		 Length L(mm)
(+1.57,-0.00)		 Small End Thread D. Big End Thread D. Hardness(HRA)
5/8"-3/4" 38.10 101.6 15/16" 1-1/16" 56-62
3/4"-7/8" 41.30 1-1/16" 1-3/16"
7/8"-1" 50.80 114.3 1-3/16" 1-3/8"

Full Size  Polished Connection

Size(in) Coupling O.D W(mm)
(+0.13,-0.25)		 Length L(mm)
(+1.57,-0.00)		 Thread D.(in) Vanish Cone Hardness(HRA)
5/8" 38.10 101.6 15/16" 9O 56-62
3/4" 41.28 1-1/16"
7/8" 46.00 1-3/16"
1" 55.60 1-3/8"
1-1/8" 60.33 114.3 1-9/16"



Slim Hole Polished Connection



Size(in) Coupling O.D W(mm)
(+0.13,-0.25)		 Length L(mm)
(+1.57,-0.00)		 Thread D.(in) Vanish Cone Hardness(HRA)
5/8" 31.75 101.6 15/16" 9O 56-62
3/4" 38.10 1-1/16"
7/8" 41.30 1-3/16"
1" 50.80 1-3/8"



 Coupling Mechanical Properties



Tensile Strength Rm(Mpa) Yield Strength Rel(Mpa) Elongation Percentage A(%) Reduction Percentage of Area Z(%)
≥655 ≥405 ≥16 ≥48
