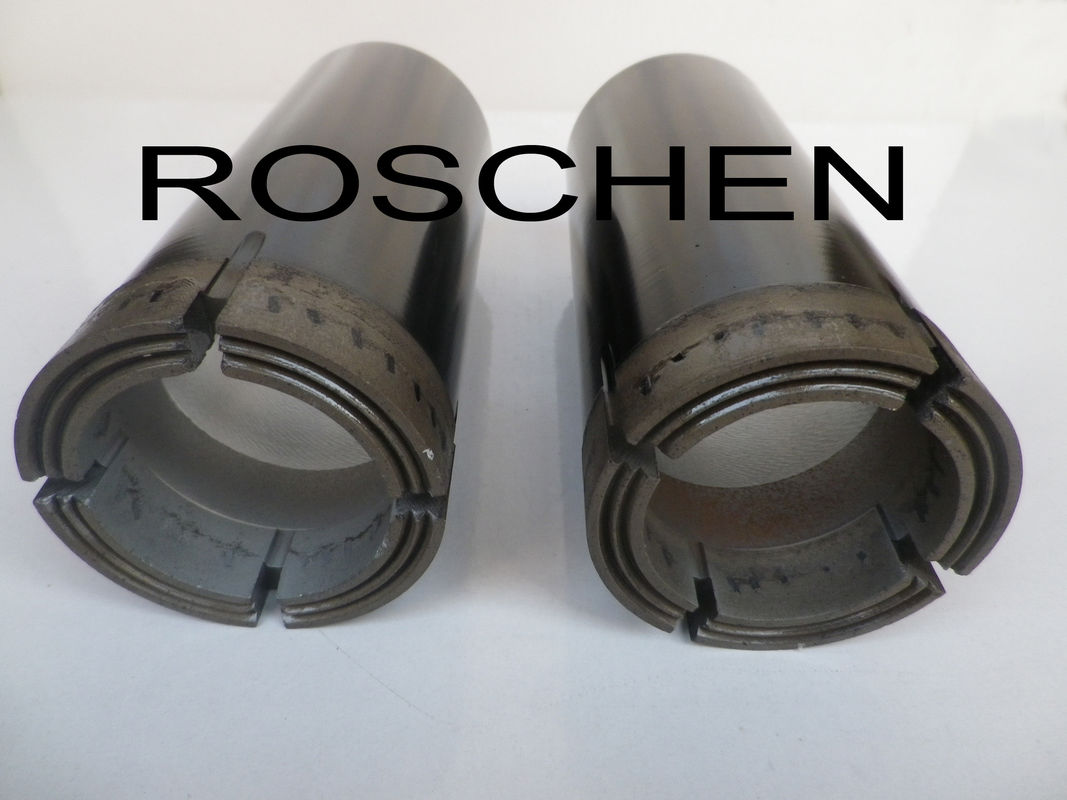

LTK48 Impregnated Diamond Core Bit / LTK Core drilling bit for Australian Exploration Drilling
LTK48 impregnated core bit is a thin wall bit.
Impregnated Diamond Core Bit
1. Impregnated Diamond Core Bit is made with high quality synthetic diamonds, mixed evenly through a metal alloy matrix.
2. It can drill various formations from the softest to hardest rocks.
Features:
1. Significantly outperforms the successful Series range in drilling speed and bit life.
2. Protects the diamond from oxidation and surface degradation.
3. Inhibits the premature "pull-out" of the diamond.
4. Available in multiple standard configurations and selected on the basis of relative rock hardness and ground conditions.
Sizes Available:
1. LTK48, LTK60
2. PQ, HQ, NQ, BQ, AQ
3. T2-46, T2-56, T2-66, T2-76, T2-86, T2-101, T6-86, T6-101, T6-116, T6-131, T6-146, T6-150, T6-170
4. Other standard CDDA, DCAMA, Craelius, and ISO sizes.
The impregnated diamond core bit has emerged as the most commonly used type in the mineral exploration industry.
The advantages of using impregnated diamond core bits over bits manufactured with other cutting media include:
A. An extremely wide range of application.
B. A simple crown geometry that makes them less susceptible to in-hole damage than bits produced with other types of cutting media and as such are more tolerant of changing or banded geological formations.
C.Their multi-layered cutter arrangement results in better overall bit life than bits produced with other types of cutting media. They are particularly well suited for drilling in hard, consolidated, non-abrasive formations.
Size available:
| 1 | A-Gauge Core Bits: | AQ, AQ-RSG, AWG(AX), AWM, AWT, LTK48 |
| 2 | B-Gauge Core Bits: | BQ, BQ-RSG, BQ-2.400, BQ3, BWG(BX), BMLC, BWM, BWT, LTK60, TBW |
| 3 | N-Gauge Core Bits: | NQ, NQ-RSG, NQ-3.032, NQ2, NQ2-RSG, NQ3/NQTT, NQ3-RSG, NQ3-3.032, NMLC, NWG(NX), NWM, NWT, TNW, |
| 4 | H-Gauge Core Bits: | HQ, HQ-RSG, HQ-3.830, HQ-3.895, HQ3/HQTT, HQ3-RSG, HQ3-3.895, HMLC, HWF-Long, HWF-Short, HWG(HX), HWT |
| 5 | P-Gauge Core Bits: | PQ, PQ3, PWF-Long, PWF-Short |
| 6 | S-Gague Core Bits: | SWF-Long, SWF-Short |
| 7 | U-Gague Core Bits: | UWF-Long, UWF-Short |
| 8 | Z-Gauge Core Bits: | ZWF-Long, ZWF-Short |
| 9 | T, TT, T 2& TB Series Metric Core Bits: | T36, TT46, T2-46, TB56, TT56,T2-66,T2-76, T2-76Coreline, T2-86, T2-86 Coreline, T2-101, T2-101 Coreline |
| 10 | T6 Series Metric Core Bits: | T6-76, T6-86, T6-101, T6-116, T6-131, T6-146 |
| 11 | T6S Series Metric Core Bits: | T6S-76, T6S-86, T6S-101, T6S-116, T6S-131, T6S0146 |
| 12 | B Series (IS03552-1) Metric Core Bits: | B36, B46, B56, B66, B76, B86, B101, B116, B131, B146 |
